3M Cable Repair Kits
M Series
- Features a wraparound mold, which maintains excellent physical and electrical properties
- Provides permanent, flexible and moisture-resistant jacket repair
- For insulation, mechanical protection and repair of cables
- Repairs 1.6 to 2.5-in dia x 13 to 15-in L cables
Description
The 3M Cable Repair Kit M-20 offers permanent, moisture-resistant jacket repairs and helps in portable cable splicing. This Kit includes a reusable wraparound mold, flame-retardant compound and accessories that are necessary for repairing cable jackets. It is suitable for insulation, mechanical protection and repairs, or splices of cables rated up to 2 kV.
The Kit features a durable and flexible jacket repair when it is combined with a flame-retardant compound. Both portable power cables and standard cables can be repaired with the Kit. The wraparound mold included in the Kit allows you to repair the jacket without cutting through the cable. This Kit is suitable for medium-voltage applications.
Repairs both portable power cables or standard cables
Wraparound mold repairs the jacket without cutting through the cable
Works on cables rated up to 2 kV

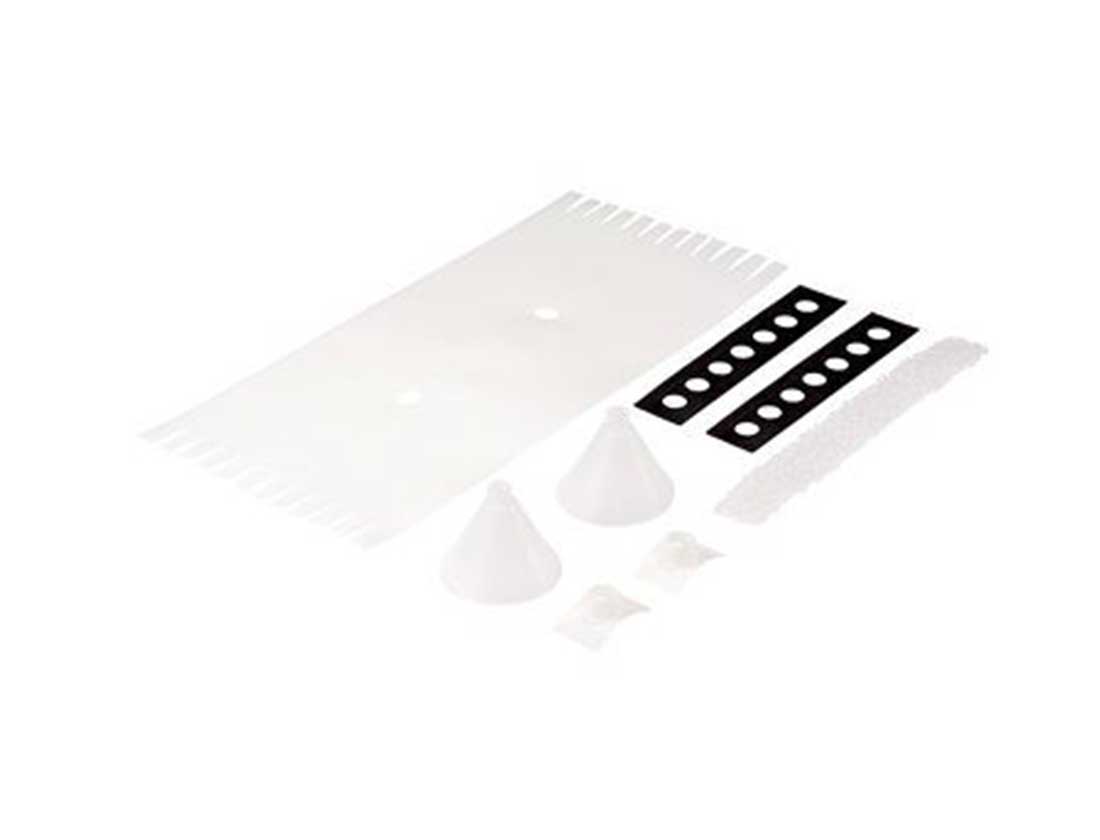

Includes reusable wraparound mold, flame-retardant compound and accessory materials
MSHA Approved and RoHS 2011/65/EU Compliant
1 kit/case
Application
Insulation, mechanical protection, repair
Cable Accessory Products
Electrical Resins
Cable Outside Diameter Range
40.64 - 63.5 mm
Cable Type
Multi-core, non-shielded, polymeric insulated cable
Flame Retardant
Yes
Inner Diameter Before Shrink (Imperial)
63.5 mm
Length (Metric)
510 mm
Model
Cast Resin
Number of Conductors
3
Resin Type
SC 2131
RoHS 2011/65/EU Compliant
Yes
RoHS EU Comments
RoHS 2011/65/EU compliant without exemption *Important RoHS information
Shelf Life
36 months
Splice Type
Inline Splice
Voltage
6 kV
Voltage Application
Medium Voltage
Voltage Rating
0.6/1 kV
