Emergency Lighting Exit Signs
Exit Sign - Mercury White | Black
White | Black
10 Years Design Life
DALI Compatible
High Quality Lithium battery
Description

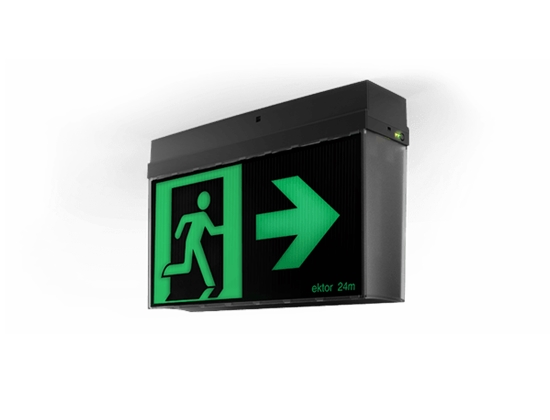

Mercury White | Black Exit Signs
Emergency Exit | 300×150 mm decal
High quality design ensures great luminance and avoids glare. Additionally reduces the unwanted effects such as unevenness, and the amount of external light that is reflected.
Designed for use with the Mercury IP65 Case/Housing | Weather and Vandal Resistant
An easy to install weatherproof option can be used with the Mercury exit signs, allowing the use in more extreme weather conditions.
GENERAL FEATURES
Single and double-sided decals | Soft-start charger to reduce building load | Available in low illumination area black model | IP65 Weatherproof Case available but not included | Fast emergency switch-over (<0.5s) for high-task areas | Wall, ceiling, chain and rod mounting (with Rod Mount Kit)
BUILT TO LAST
Long life electronics | 10 Years Design Life – 100,000 hours at max. ambient | High Quality Lithium battery (LiFePO4) and smart charger
SUITABLE INSTALLATION TYPES (OUT OF THE BOX)
Standalone (SPU) | Self test (AS2293/ IEC62034 | DALI (IEC62386) | Ektor wired monitored system
SUPPLY VOLTAGE
240V~ 50Hz
AMBIENT TEMPERATURE
0 – 40°C
CLASS
2
WIRING
Terminal block (1-16 mm □)
IP RATING
IP20 (IP65 Weatherproof Case available but not included)
MOUNTING TYPE
Surface/suspended (Rod Mount Kit available but not included)
VIEWING DISTANCE
24M

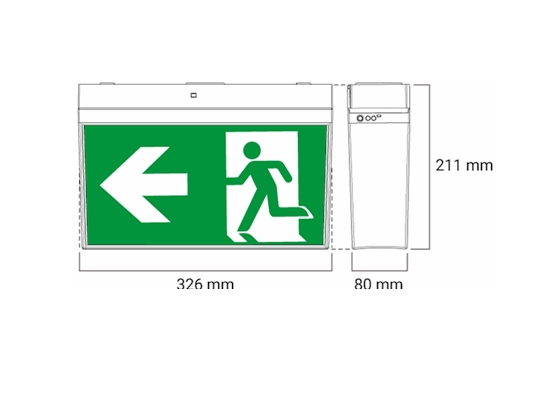

DECAL SIZE
300 x 150 mm
EMERGENCY LAMP POWER
1.5 W
EMERGENCY RATED DURATION
90 / 120 min (1 / 3 / 4 / 8 hours, selectable)
CLASSIFICATION
C0:C12.5, C90:C20 (2hr)
COMPLIANCE STANDARDS
AS/NZS 60598.2.22 AS/NZS 2293.3 IEC 60598-2-22 IEC 62386-102 IEC 62386-202 IEC 62034 CISPR 15
BATTERY TYPE
LiFePO4
BATTERY VOLTAGE
6.4V
BATTERY CODE
01300
CHARGER TYPE
Smart charge
TIME
16 hours
OPERATION
Multi-state
