LED Batten
Slimline Seamless TC Linkable
Slim Profile
Linkable
Selectable Colour Temperature
| 29605 |
Description
Great for commercial shop spaces, home workshops, pantries, walk-in wardrobes and other utility areas
Selectable colour temperature 3000K, 4000K, 5500K, beam distribution 105 degree, CRI > 80
Polycarbonate body profile and opal diffuser
Integral constant current non-dimmable driver
Individual switch control, plug and play flex and plug included

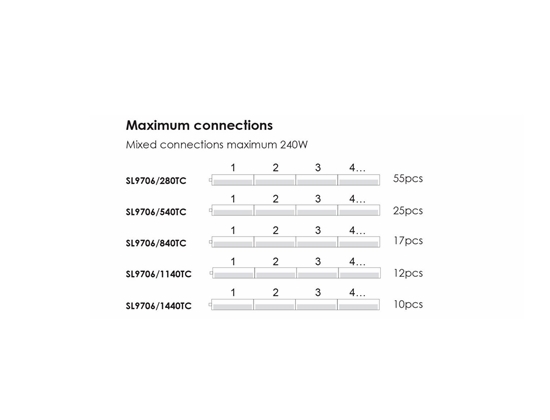

Maximum connections: 280TC 55, 540TC 25, 840TC 17, 1140TC 12, 1440TC 10 UNITS
Accessories: SL9706/32CM LINK (L 320mm) SL9706/76CM LINK (L 760 mm)
| 29605 |
4W

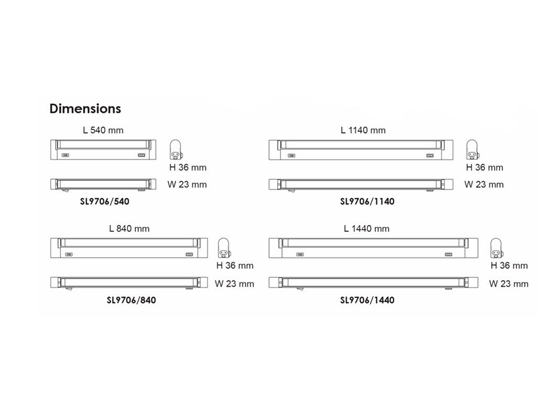

Model No. SL9706/280TC | Input (V) 240 | Power (W) 4 | Lumen (lm) 300lm 380lm 300lm | CCT (K) 3000K 4000K 5500K | CRI 80 Beam Angle 105° Dimensions 280(L) x 23(W) x 36(H) | Body Colour White
9W
Model No. SL9706/540TC | Input (V) 240 | Power (W) 9 | Lumen (lm) 750lm 800lm 750lm | CCT (K) 3000K 4000K 5500K | CRI 80 Beam Angle 105° Dimensions 540(L) x 23(W) x 36(H) | Body Colour White
13W
Model No. SL9706/840TC | Input (V) 240 | Power (W) 13 | Lumen (lm) 1050lm 1200lm 1050lm | CCT (K) 3000K 4000K 5500K | CRI 80 Beam Angle 105° Dimensions 840(L) x 23(W) x 36(H) | Body Colour White
18W
Model No. SL9706/1140TC | Input (V) 240 | Power (W) 18 | Lumen (lm) 1550lm 1600lm 1600lm | CCT (K) 3000K 4000K 5500K | CRI 80 Beam Angle 105° Dimensions 1140(L) x 23(W) x 36(H) | Body Colour White
22W
Model No. SL9706/1440TC | Input (V) 240 | Power (W) 22 | Lumen (lm) 1800lm 2000lm 1800lm | CCT (K) 3000K 4000K 5500K | CRI 80 Beam Angle 105° Dimensions 1440(L) x 23(W) x 36(H) | Body Colour White
