Smoke Alarm

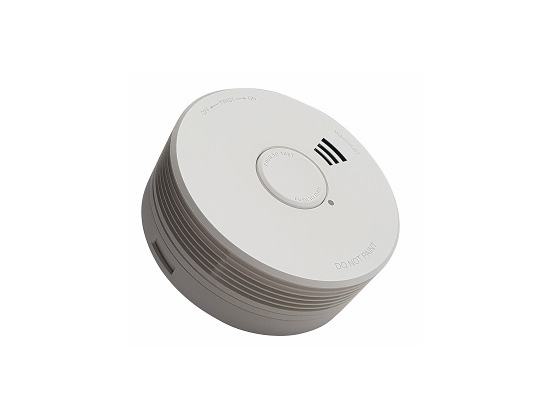

LIF10YPEW – 10 Year Sealed Wireless Photoelectric Smoke Alarm
Built in RF wireless interlink control
Interconnection up to 24 units
10 years – manufacturers warranty
Tested & Complies to the latest AS3786:2014 standard
Description
LIFESAVER Series 2 of smoke alarms
The LIF10YPEW smoke alarm uses photoelectric technology.
Specifically powered by a non-replaceable 10 year lithium battery.

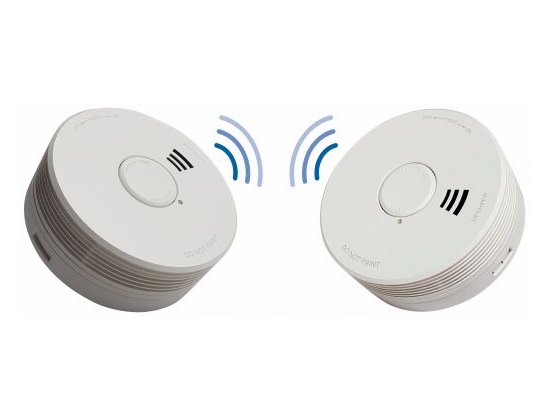

The PSA LIFESAVER LIF10YPEW smoke alarm has a built in RF wireless interlink control.
Interconnection is possible for up to 24 units.
For example when the RF interlinked unit sounds an alarm, units in the same RF interlink network will alarm.
The LIFESAVER Series 2 smoke alarms uses the popular QUICK SLIDE base plate design.
Therefore is activated once connected into the mounting base.
LIF10YPEW, equipped with a tamper resistant feature. Preventing removal of the smoke alarm.
Interestingly, the LIFESAVER LIF10YPEW does not need a home WIFI system.
Multiple wireless units combined create their own independent network.
Not suitable for wall or vertical mounting.
Tested & Complies to the latest AS3786:2014 standard.
•
Lithium (non-replaceable sealed in) battery operated smoke alarm with built-in RF interlink module
•
Photoelectric Sensing Technology
•

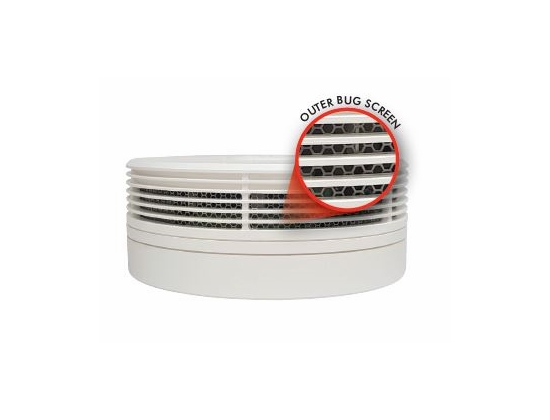

Designed with two bug screens. One around the perimeter and another smaller mesh around the sensor chamber
•
Single button operation (Test and Hush feature)
•
Surface mounting bracket for easy installation
•
Stand alone operation or wirelessly interconnect up to 24 units
•
Tamper resistant feature
•
Designed with two lithium 10 year batteries • A dedicated battery for the smoke alarm • A dedicated battery for RF wireless module
•
Fully monitored and supervised wireless network
•
Compatible with PSA LIFESAVER LIF5800/2 and LIF5800RL/2 mains powered smoke alarms fitted with LIFWMB2 wireless base plate
•
Range 30m indoors. 100m line of sight
Manual
Detection Method
Photoelectric / Photo-optical sensing technology
Operation
Stand-alone or interconnect up to 24 units
Smoke Alarm Power
Panasonic/FDK 10 year 3VDC CR17335 Fixed battery
RF Power
Panasonic/FDK 10 year 3VDC CR17455 Fixed battery
Alarm Sound
85dB at 3m ISO8201 T3 sound pattern
Hush Function
10 minutes. Red LED Flash every 10 seconds
RF Frequency
918MHz
Wireless RF Module Power
100m line of sight | 30m indoors
Temperature Range
0˚C to 45˚C
Humidity Range
Up to 95% relative humidity (RH)
Bug Screens
Outer metal screen 1.8mm diameter Inner sensor chamber screen 1.0mm diameter
Warranty
10 years - manufacturers warranty
Compliance
Activ re Approved and listed to AS3786:2014 Amdt 1. AS4268:2017 RCM. Manufactured to ISO9001 Standard
