Smoke Alarm
LIF5800ACF – 240V Flush Smoke Alarm
Lifesaver Silhouette 5800ACF is a low profile mains powered photoelectric smoke alarm
Activfire Approved and listed to AS3786:2014 Australian standards certified product
Life-time 10 year warranty
Description

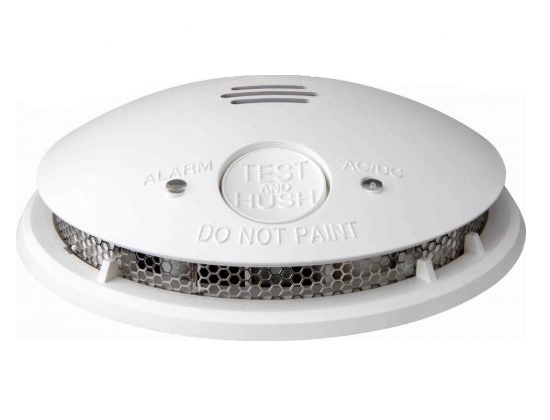

The Lifesaver Silhouette 5800ACF is a low profile mains powered photoelectric smoke alarm.
Lifesaver Silhouette operates on a 240V power source.
Supplied with a non-removable 10 year lithium battery backup.
Specifically this advanced smoke alarm is flush mount design. Measuring only 110mm wide x 28.5mm high when installed.
The dual insect screen design reduces alarms from bugs and insects.
Life-time 10 year warranty.
Compatible with other Lifesaver smoke alarms and heat alarm.
Additionally, carbon monoxide alarm and ancillary devices.
•

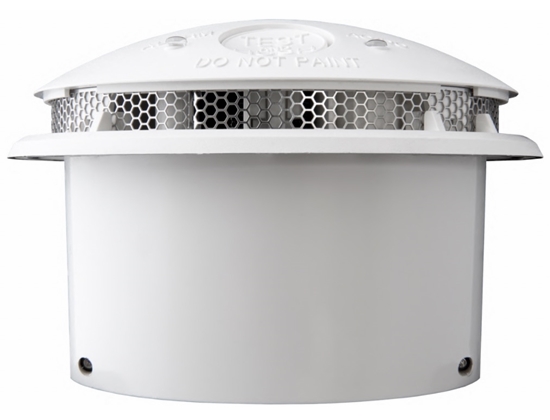

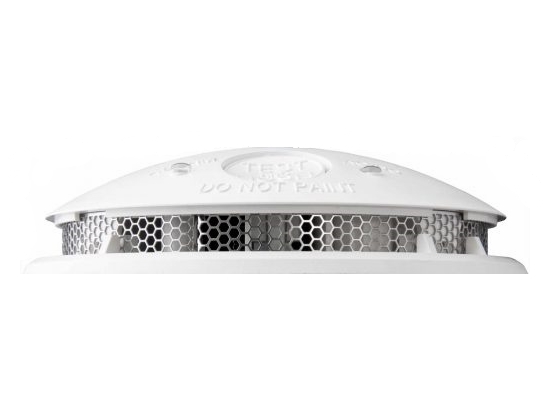

Low profile flush mount design
•
Photoelectric Sensing Technology
•
204VAC with sealed 10 year lithium battery backup, no longer need to change battery
•
One Button Test and Hush feature - large easy design button to Test alarm operation and Hush to silence nuisance alarms
•
Two LED's - Green LED indicates AC condition | Red LED indicates alarm condition
•
Alarm memory
•

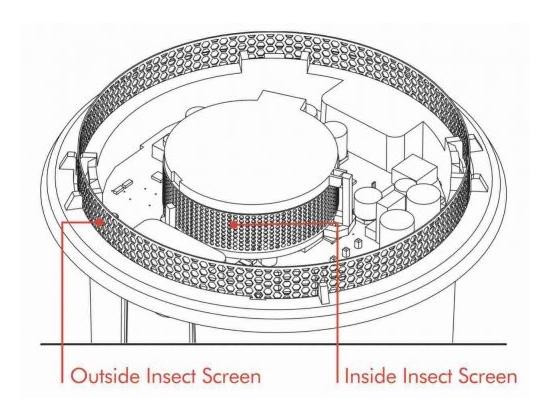

Dual insect screens over outer perimeter and inner sensor chamber to reduce nuisance alarm
•

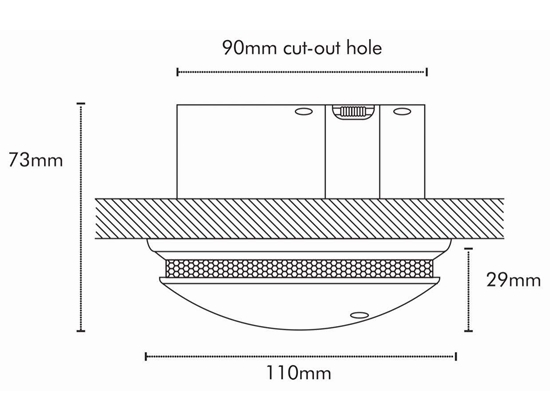

90mm cut-out, downlight style mounting for quick and easy installation
•
Operates as a single unit or interconnect up to 24 units
Manual
Compatible With
Lifesaver range of smoke alarms, heat alarm, CO alarm and auxiliary devices
Detection Method
Photoelectric sensing technology
Operation
Stand-alone or interconnect up to 24 units
Power Requirement
240V AC 50Hz sine wave supply
Power Backup
Non-removable 10 year lithium battery
Rating
4mA max per alarm
Alarm Sound
85dB at 3m
Low Battery Indication
Sounds a chirp at 43 second intervals, in addition to red LED flashing
Alarm Duration
As long as smoke is present, unit automatically resets when smoke clears
Alarm Indication
Audible alarm, 3 long beeps repeating. Flashing red LED every 0.5 seconds
Temperature Range
0ºC to 40ºC
Humidity Range
Up to 93% relative humidity (RH)
Size
110mm Wide x 73mm High. 28.5mm High installed
Wiring
110mm Wide x 73mm High. 28.5mm High installed
LED
Green, power indicator Red, alarm indicator
Warranty
10 years
Compliance
Activfire Approved and listed to AS3786:2014 Australian standards certified product. Australian Electrical Authority Approval. RCM
