Emergency Exit Lighting Signs
Exit Sign - Mercury Basic
5 Years Design Life
High Quality Lithium battery
Single + Double sided decals
For Use with IP65 Case
Description
Mercury Basic Emergency Exit Sign
KEY FEATURES
- 24M – 300 x 150 mm decal size
- Single and double sided decals
- Fully compliant (AS/NZS 2293)
- Works as Single Point Units (SPU) out of the box
- High Quality Lithium batteries (LiFePO4) and smart charger
High quality design ensures great luminance and avoids glare, reduces the unwanted effects such as unevenness and the amount of external light that is reflected.

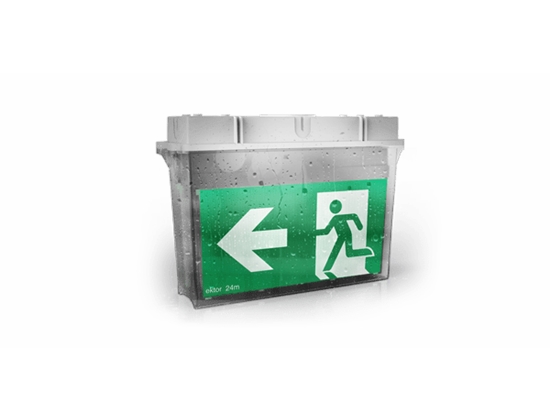

Designed for use with the Mercury IP65 Case/Housing | Weather and Vandal Resistant
An easy to install weatherproof option can be used with the Mercury exit signs, allowing the use in more extreme weather conditions.
GENERAL FEATURES
Single and double sided decals | Fully compliant (AS/NZS 2293) | IP65 Weatherproof Case available but not included | Wall, ceiling, chain and rod mounting (with Rod Mount Kit)
BUILT TO LAST
Long life electronics | 5 Years Design Life – 44,000 hours at max. ambient | High Quality Lithium battery (LiFePO4) and smart charger
SUITABLE INSTALLATION TYPES (OUT OF THE BOX)
Standalone (SPU)
SUPPLY VOLTAGE 240V~ 50Hz
240V~ 50Hz
AMBIENT TEMPERATURE
0 – 40°C
CLASS
2
WIRING
Terminal block (1-16 mm □)
IP RATING
IP20 (IP65 Weatherproof Case available but not included)
MOUNTING TYPE
Surface/suspended (Rod Mount Kit available but not included)
VIEWING DISTANCE
24M
DECAL SIZE
300 x 150 mm
EMERGENCY LAMP POWER
1.0 W
EMERGENCY RATED DURATION
90 / 120 min
EMERGENCY CLASSIFICATION
C0:D5, C90:D5 (2hr)
COMPLIANCE
STANDARDS AS/NZS 60598.2.22 AS/NZS 2293.3 IEC 60598-2-22 AS CISPR 15
BATTERY TYPE
LiFePO4
BATTERY VOLTAGE
3.2V
BATTERY CODE
01307
CHARGER TYPE
Smart charge
CHARGER TIME
16 hours
CHARGER OPERATION
Variable
