LIC 250 FILTRATION & PRESSURIZATION
High-efficiency Air Cleaner
Designed to Protect Operators
Protects Control Room Instrumentation
| 29656 |
Description
LIC 250 FILTRATION & PRESSURIZATION
PROTECT OPERATORS AND ASSETS FROM GASSES AND PARTICULATE MATTER
In addition to best-in-class, severe-duty air conditioning systems, Lintern Corporation proudly offers the LIC 250 filtration and pressurization system. This device is a compact, high-efficiency air cleaner designed to protect operators, control room instrumentation, and other equipment from hazardous and toxic airborne gas and particulate matter. It features a string of four filters and features a variable frequency drive (VFD) for greater efficiency.
Explore the specifications and flexible mounting options for the LIC 250 pressurization and filtration unit below. If you’d like to learn more about the features and applications of this unit and discuss its available options, please contact our team today.
| 29656 |
CAPACITY (FT2/M3)
Pressurization of enclosures up to 840 ft³ (24 m³) @ 50/60Hz calculations based on 10% of room volume leakage per minute | Pressurization level of 0.05 inches W.C. (12.5Pa) | 250 CFM total capacity
CABINET
Heavy gauge steel, epoxy coated | Optional 316 stainless steel
VFD
Variable Frequency Drive package with pressure transducer to automatically maintain internal room pressure
VOLTAGE
208-230/460/575/3/60 Hz VAC | 380-415/500/3/50 Hz VAC | 240 VDC with VFD
SLIDE PLATE
Adjustable slide plate located on return air opening
BLOWER
Motorized impeller, backward curved
FILTER TRAIN
No. 1 filter: Electrostatic pre-filter, washable No. 2 filter: Disposable 2” (50mm) pleated filter No. 3: Two (2) cells (40 lbs. each) with disposable media designed for your specific application No. 4 filter: Absolute HEPA filter using a disposable glass medium; 99.97% efficiency on particulates .3 microns or larger
WEIGHT (LB/KG)
Filter: 280 lb/127 kg | Control panel: 20 lb/9 kg | Total: 300 lb/147 kg

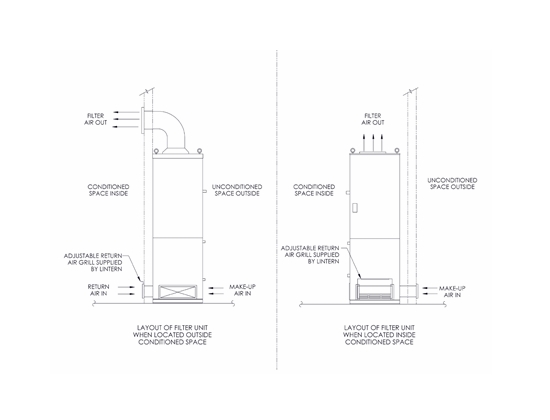

MOUNTING
Vertical mount only | Direct to interior or exterior wall of enclosure or remote mount not exceeding 6’ (1.8m) away from enclosure
