LIF4000/LIF4100 FILTRATION & PRESSURIZATION
Removes toxic gas + particulate matter
Protects equipment operators + other employees
Protects critical instrumentation
| 29656 |
Description
LIF4000/LIF4100 FILTRATION & PRESSURIZATION
PROTECT OPERATORS AND ASSETS FROM GASSES AND PARTICULATE MATTER
If your air filtration and pressurization needs exceed the capacity of our LIC 250 System our LIF4000/LIF4100 filtration and pressurization system will meet your air cleaning needs.
Designed to remove toxic gas and particulate matter from various size enclosures, the LIF4000/LIF4100 protects equipment operators and other employees — as well as critical instrumentation — in some of the most hazardous industries and applications around the world.
Explore the specifications and flexible mounting options for the LIF4000/LIF4100 pressurization and filtration unit below.
If you’d like to learn more about the features and applications of this unit and discuss its available options, please contact our team today.
| 29656 |
CAPACITY (FT2/M3)
Pressurization of enclosures up to 3000 ft³ (85 m³) @ 50/60Hz calculations based on 10% of room volume leakage per minute | Pressurization level of 0.05 inches W.C. (12.5Pa) | Total capacity: 600-900CFM | For additional pressurization levels, contact our team
CABINET
Heavy gauge steel, epoxy coated | Optional 316 stainless steel
VFD
Variable Frequency Drive package with pressure transducer to automatically maintain internal room pressure
VOLTAGE
208-230/460/575/3/60 Hz VAC | 380-415/500/3/50 Hz VAC | 240 VDC with VFD
SLIDE PLATE
Adjustable slide plate located on return air opening
BLOWER
Motorized impeller, backward curved
FILTER TRAIN
No. 1 filter: Electrostatic pre-filter, washable | No. 2 filter: Disposable 2” (50mm) pleated filter | No. 3 filter: Absolute HEPA filter using a disposable glass medium; 99.97% efficiency on particulates .3 microns or larger | No. 4 filter: Six (6) cells (20lbs. each) with disposable media designed for your specific application
HEATER (OPTIONAL)
Optional with additional control package | 13,660 BTUH (4 kW) | WEIGHT (LB/KG) | Filter: 470 lb/213 kg | Panel: 20 lb/9 kg | Total: 490 lb/222.26 kg

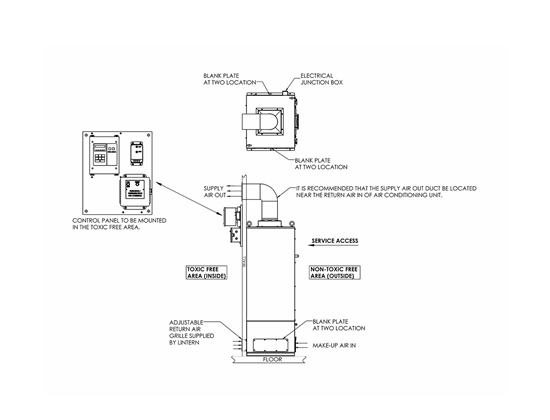

MOUNTING
Vertical floor mount only | Direct to interior or exterior wall of enclosure or remote mount not exceeding 10’ (1.8m) away from enclosure
OPTIONS
Larger rooms can string up to 3 filters
