Bag Filters
DriPak® Bag Filters
High Performance Reliability
Micro-fine glass fiber media
Low resistance and high dust holding capacity
Applications Include – Commercial Buildings | Data Centers | Firing Ranges | Food + Beverage | Healthcare | Hospitality | Museums + Historic Storage | Schools and Universities | Surface Finishing
Description
DriPak® Bag Filters
Product Overview
- Micro-fine glass fiber media
- Low resistance and high dust holding capacity

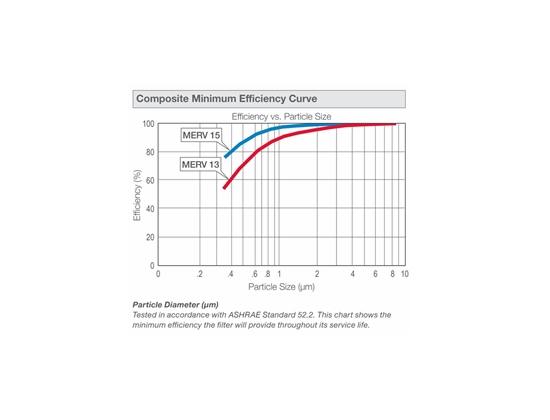

- Available in two efficiencies, MERV 15 and MERV 13
- Engineered for performance reliability
Typical Applications Include – Commercial Buildings | Data Centers | Firing Ranges | Food + Beverage | Healthcare | Hospitality | Museums + Historic Storage | Schools and Universities | Surface Finishing
Engineered for high performance reliability, DriPak extended surface pocket filters are perfect as both prefilters and final filters. DriPak filters are an excellent choice for healthcare facilities, automotive paint booths, commercial buildings, and various industrial applications. Manufactured by AAF Flanders, the original developers of the extended surface pocket filter, DriPak filters have set the industry standard for over 40 years.
High Performance, Low Resistance

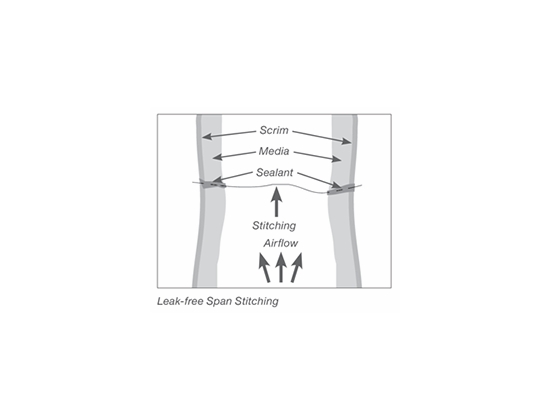

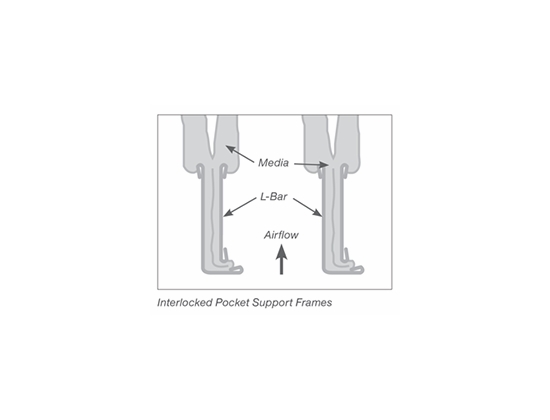

DriPak filters consist of multiple collapsible filter pockets mechanically attached to a U-channel header (13/16" or 1 1/8"). The pockets are fabricated from micro-glass fiber media supported by a layer of synthetic scrim backing, offering low resistance at a high level of cleaning efficiency. Aerodynamic balancing, span stitching and thermoplastic sealant guarantee long, leak-free performance. Interlocked metal support frames attached to the pockets prevent flexing and buckling. Made of corrosion-resistant galvanized steel, the double reinforced header forms a solid container for the pocket support frames. DriPak filters operate continuously at temperatures up to 150°F, but they should not be stored or transported in conditions exceeding 135°F. Gaskets and pocket support loops are available on all DriPak filters. The DriPak filter is a product that may contribute to the achievement of LEED Project Certification.
Efficiency
MERV 15 MERV 13
Filter Depth
12"-36"
Media Type
Fiberglass
Frame Material
Galvanized Steel
Special Size Available
No
Max Operating Temperature
150˚F (66˚C)
