Bag Filters
DriPak® 2000 Bag Filter
The DriPak 2000 filter has improved performance
Ultrasonically-welded pocket configuration
Employ’s complete pocket inflation, eliminating crowding or leakage.
Applications – Automotive | Commercial Buildings | Data Centers | Food and Beverage | Hospitality | Industrial | Schools and Universities
Description
Bag Filter – DriPak® 2000
DriPak® 2000 Product Overview
- High-loft, layered, melt blown synthetic media is non-shedding, water-resistant, and improves performance
- Ultrasonically-welded pocket configuration that guarantees complete pocket inflation and eliminates crowding or leakage
- Melt blown synthetic media is stronger than fiberglass
- Ultrasonically-welded pocket spacers and edges
- Available in four efficiencies: MERV 15, MERV 14, and MERV 12
- Available with antimicrobial
Typical Applications – Automotive | Commercial Buildings | Data Centers | Food and Beverage | Hospitality | Industrial | Schools and Universities
Designed for high performance in demanding operating conditions
The DriPak 2000 extended surface pocket filters can function as either pre filters or final filters, where clean air is a necessity.
DriPak 2000 filters are ideal for healthcare facilities, automotive paint booths, commercial buildings, and a variety of industrial applications. Designed and manufactured by AAF Flanders, pioneers in extended surface pocket filters. The ultrasonically-welded DriPak 2000 filter raises the industry standard for value and performance.
Now Better Than Ever
Today’s DriPak 2000 filter features a unique, ultrasonically-welded pocket configuration that guarantees complete pocket inflation and eliminates crowding or leakage. Reinforced pocket support frames eliminate flexing or buckling, even in a turbulent operating environment.
The DriPak 2000 filter is available in four efficiencies, MERV 15, MERV 14, and MERV 12 to meet the requirements of your HVAC system. The DriPak 2000 filter with antimicrobial is designed specifically to improve Indoor Air Quality (IAQ).
Air filters trap and concentrate particulate air contaminants. Importantly this includes viable fungal and bacterial spores. The presence of the antimicrobial preservative in the filter media is intended to preserve the integrity of the media throughout the useful life of the filter. Antimicrobial preservatives are not meant to increase the efficiency of the filter, nor to kill microorganisms “on the fly” as they pass through a filter.
IAQ Engineered
The DriPak 2000 filter is made from layered, meltblown synthetic media, protected by a scrim on the air-leaving side. Layering the media provides both a high-efficiency final filter layer that effectively filters fine particulate, and an integral lofted prefilter layer that captures larger particulate. Meltblown synthetic media is stronger than fiberglass, and is both non-shedding and water-resistant.
Designed for Performance

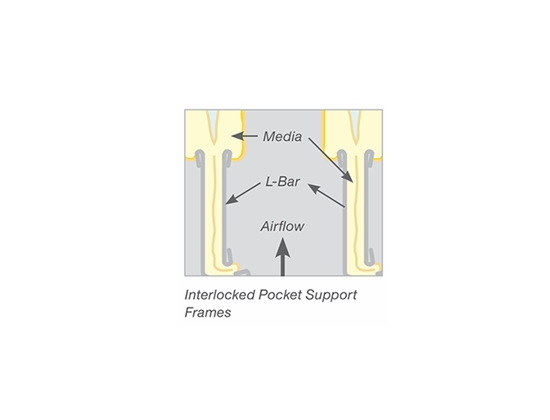

DriPak 2000 filters employ a sturdy pocket design that includes ultrasonic welding to ensure leak-free pockets. Interlocked support frames attached to the pockets prevent flexing and buckling during full inflation. The double U-shaped, reinforced header forms a solid container for the pocket support frames.

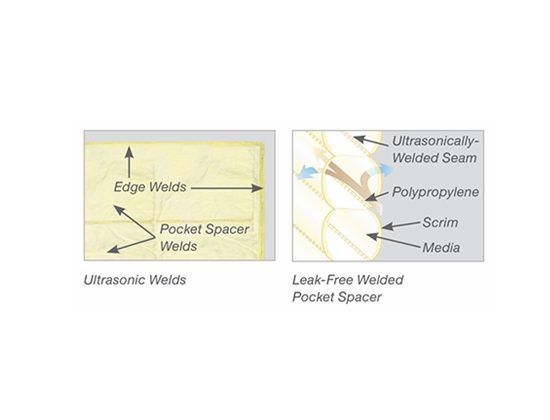

Ultrasonically-Welded Pocket Construction
The DriPak 2000 filter ultrasonically-welded pocket construction features ribbons of fabric sealed inside the pockets to create aerodynamic channels. This eliminates the needle holes associated with span stitching. The contoured shape of the pocket allows full inflation without crowding or restricting airflow, to ensure full media utilization and long service life.
Filter Depth
Various
Media Type
Synthetic
Frame Material
Galvanized Steel
Antimicrobial Available
Optional
Max Operating Temperature
150˚F (66˚C)
Certification
UL900
