Ceiling Fan AC

Revolution 3

Added to List

Maximum Airflow 14,308m³/hr

Suitable for use with Building Automation Systems

Coastal/Indoor/Outdoor undercover use

Limitless applications from Bedrooms to Entertainment Zones

| 20333 |

Description

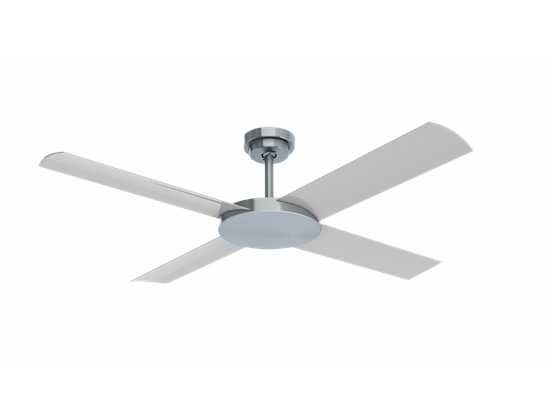

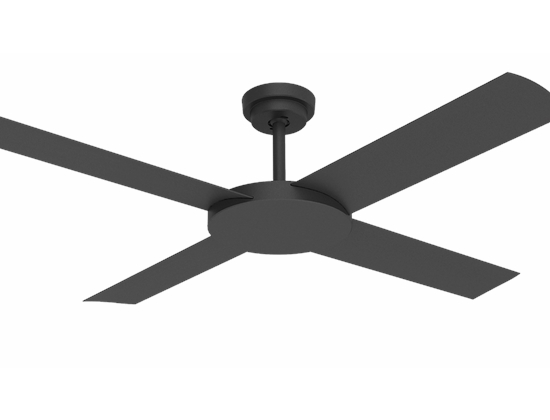

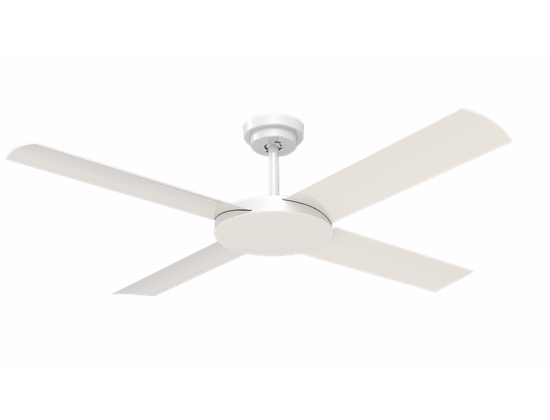

Revolution 3 available in 2 models – No Light and Light

The Revolution 3 has an upgraded motor, increased blade pitch and minor cosmetic changes while retaining the popular looks of the original Revolution fan.

The game changing Revolution 3 LED performs as good as the fan that inspired it.

With one of the most powerful and thinnest LED lights in its class. The Revolution 3 LED is an ideal fan for bedrooms, study areas and resorts.

The secret behind Revolution 3 LED΄s clean, crisp, even spread of light is placing the LEDs around the perimeter of the diffuser instead of above it, thus blending the best commercial lighting
practices with the stylish fan designs Hunter Pacific is famous for.

Ceiling fans circulate air within a room and provide a cooling effect through the action of air moving over the skin.

In addition to making the room feel up to 6° cooler, they can significantly assist in savings up to 30% off your energy bills.

In winter ceiling fans redistribute warm air that gathers at the ceiling.

Running your fans in reverse, draws the air that naturally rises and gently re-circulating it throughout the room. Therefore balance the room’s temperature.

All ceiling fans should be at least 2.1 meters from floor to tip of the blades and at least 300mm from ceiling.

AC vs DC FANS

Alternating Current Motors  (AC) use supplied power directly and regulate speeds by controlling frequency. AC Motors generally only have 3 speeds.

Direct Current motors (DC) convert supplied power directly. and regulate speeds by controlling electrical current. These Motors use up to 70% less energy than standard AC fans. Furthermore DC Ceiling Fans are more efficient, offering virtually silent operation.

Direct Current models usually have 5 or 6 speeds and are remote controlled.

Ceiling Fans purchased through Davis + Spence are covered by a Manufacturer’s Warranty

Always use a licenced professional for installation.

| 20333 |

Safe, quiet polymer aerofoil blades

3 Speed Wall Control

Slimline Motor Technology

Power usage: 11W to 55W

Suitable for use with Building Automation Systems

Coastal/Indoor/Outdoor undercover use

Robust die-cast aluminium body and canopy

Instruction Manual

Motor

16 Pole, 153mm x 18mm motor Made with high grade copper windings and silicone steel stator. Bearings are sealed to ensure quiet operation and long life.

Motor Housing

Materials: Die Cast Aluminium

Available Motor Housing Colours

White, Brushed Aluminium and Matt Black

Blades: Dynamic Aerofoil

Sizes: 1320mm (52”) Materials: Injection moulded high temperature plastic Blade Pitch: 10°

Available Blade Colours

White, Silver and Matt Black

Extra Information

3 Speed wall controller | Reversible | Light Adaptable

Standard Canopy Cover

Suitable for flat and pitched ceilings up to 28°

Wall Controller Speed Capacitor Values

3.5µF & 2µF

Rotational Diameter

1320mm (52”) blade sweep

Accessories (Supplied separately)

Remote Control | Extension Down Rod 26mm diameter (includes wire harness) | 38° Ceiling Kit (for pitched ceilings) T-Hook for ceiling roses

Warranty

2 years standard warranty “in home” 3 years extended warranty on motor only (excluding labour)

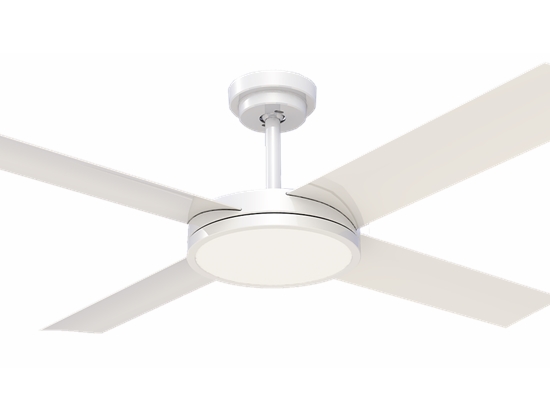

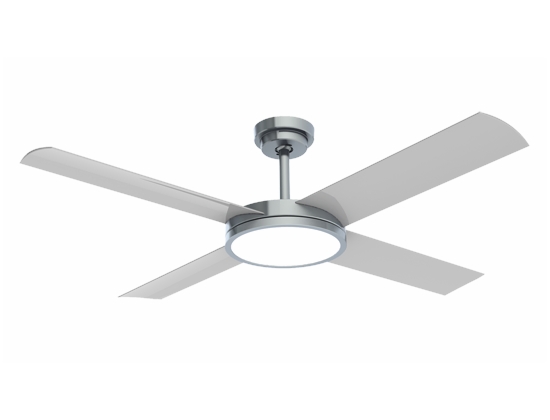

Light Model

LED Light 24W LED light (dimmable)
