Ceiling Fan DC
The Big Fan DC
Maximum Airflow 86” – 35,480 on High speed (Speed 6) | 106” – 43,620 on High speed (Speed 6)
Available in Two Sizes 2220mm (86”) | 2700mm (106”)
Colour options White, Black and Natural Oak
Indoor, outdoor and coastal locations, in residential, commercial + industrial
Description

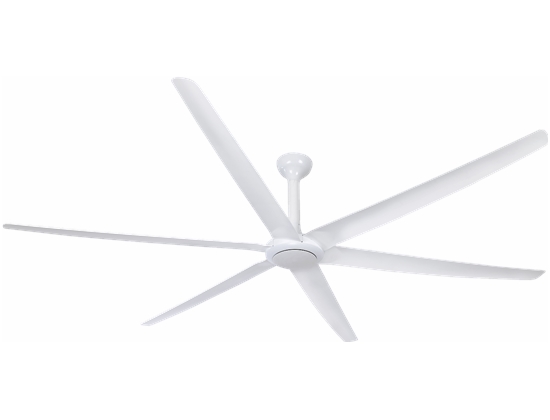

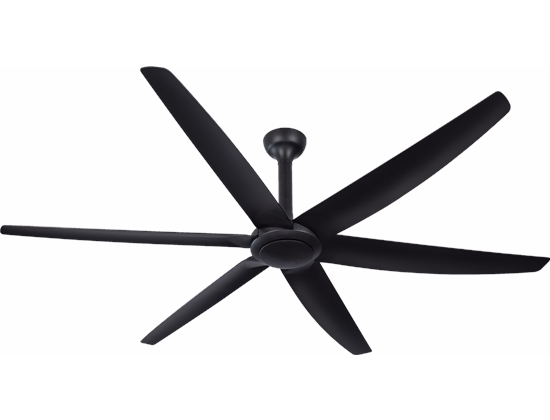

The Big Fan
Big Fan will literally blow you away with its tremendous airflow and robust performance.
Unlike any other super-sized fan on the market, this stylish, modern design ceiling fan is suitable for use in Commercial, Industrial and Residential applications
Ceiling fans circulate air within a room and provide a cooling effect through the action of air moving over the skin.
In addition to making the room feel up to 6° cooler, they can significantly assist in savings up to 30% off your energy bills.
In winter ceiling fans redistribute warm air that gathers at the ceiling.
Running your fans in reverse, draws the air that naturally rises and gently re-circulating it throughout the room. Therefore balance the room’s temperature.
All ceiling fans should be at least 2.1 meters from floor to tip of the blades and at least 300mm from ceiling.
AC vs DC FANS
Alternating Current Motors (AC) use supplied power directly and regulate speeds by controlling frequency. AC Motors generally only have 3 speeds.
Direct Current motors (DC) convert supplied power directly. and regulate speeds by controlling electrical current. These Motors use up to 70% less energy than standard AC fans. Furthermore DC Ceiling Fans are more efficient, offering virtually silent operation.
Direct Current models usually have 5 or 6 speeds and are remote controlled.
Ceiling Fans purchased through Davis + Spence are covered by a Manufacturer’s Warranty
Always use a licenced professional for installation.
| 20333 |
•
6 Aerodynamic Wedge Compression Blades
•
2200mm (86") | 2700mm (106")
•
Airflow 34,480m³/hr | 43,620m³/hr
•
6 Speed DC Remote Control supplied
•
DC Energy Efficient Motor
•
DC Wall Control Available (sold separately)
•
Only 75W on high speed
Instruction Manual
Motor
188mm x 35mm DC motor Made with high grade copper windings and silicone steel stator. Bearings are sealed to ensure quiet operation and long life.
Top Canopy & Downrod
Materials: Steel
Available Colours
White and Black
Blades
Sizes: 2220mm (86”) / 2700mm (106”) Materials: Aerodynamic Wedge Compression Blade Pitch: 15°
Available Blade Colours
White, Black and Natural Oak
Extra Information
6 Speed remote controller Reversible
Airflow
86” - 35,480 on High speed (Speed 6) | 106” - 43,620 on High speed (Speed 6)
Standard Canopy Cover
Suitable for flat ceiling
Rotational Diameter
2220mm (86”) | 2700mm (106”) blade sweep
Ceiling to top side of the blade
Approximately 420mm (86”) / 520mm (106”)
Accessories (Supplied separately)
Extension Threaded Down Rod 60mm diameter 240V DC Wall Control
Warranty
2 years in-home warranty on all electric components (control modules, remote control system, lighting and accessory wall control) 3 years standard “in home” warranty 3 years extended warranty on motor only (excluding labour)
